- Size: 2800 *2800*3800 mm
- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: C5116
- Weight: 125000.000 kg
- :

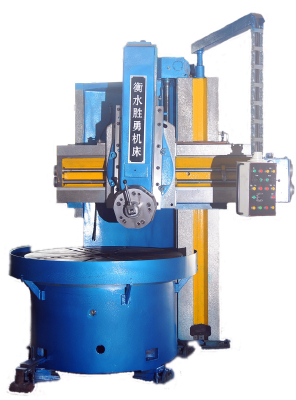

High speed conventional vertical borer lathes model:
C5112/C5116/C5118/C5120/C5123/C5125/C5126
C5225/C5232/C5240/C5250/C5263/ C5235
Technical specification of High speed conventional vertical borer lathes C5116 1 Table diameter 1400 mm
2 Maximum turning diameter 1600 mm
3 Maximum Height of workpiece 1000 mm
4 Maximum Weight of workpiece 5 t
5 Speed range of table 5-160 r/min
6 Working table Step of rotation speed 16 step
7 Range of feed rates 0.8-86 mm/min
8 Step 12 step
9 horizontal travel of vertical slide 915 mm
Vertical travel of vertical slide 800 mm
10 Horizontal travel of side tool post 600 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 650 mm
12 Maximum size of tool bar section 30×40 mm
13 Power of main motor 22 kw
Rotating Speed 1470 r/min
14 Power of feed motor 1.3/1.7 kw
Rotating Speed 940/1440 r/min
15 Machine weight(Approx) 12.5 t
16 Overall dimensions(L ×W×H) 2800 x2800X3800 mm
