- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: CK61125
- Weight: 167000.000 kg

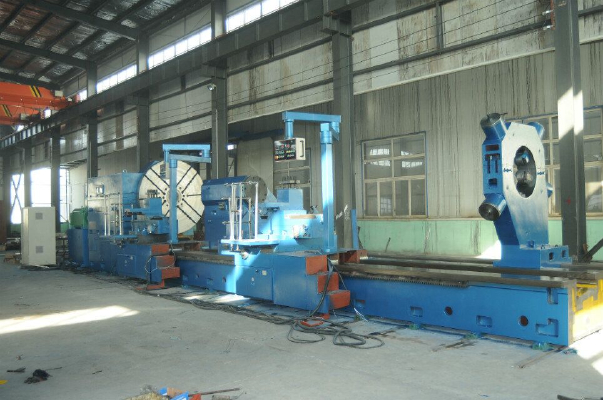

Technical specification of Heavy duty CNC horizontal lathe machine CK61250
1 Maximum swivel diameter on the bed 2500mm
2 Maximum turning diameter over carriage 2000mm
3 Maximum length of workpiece 100/120/140 dm
4 Maximum weight between center 80/100/120 t
5 Diameter of faceplate 2500mm
6 Maximum torque of faceplate 125/160 KN.m
7 Range of spindle speeds r/min 0.63-125 r/min
8 Maximum cutting force of carriage 125 KN
9 Range of feed rates ( long) 2-4500 mm/min
10 Range of feed rates( transverse ) 2-4500 mm/min
11 Rapid speed of of carriage( long) 4500 mm/min
12 Rapid speed of of carriage( transverse ) 4500 mm/min
13 Horizontal travel of tool post 1000 mm
14 Travel of tailstock quill 300mm
15 Power of main motor 125 KW
16 Machine weight(Approx) 167 t
17 Overall dimensions(L×W×H) 1850×550×325 cm
- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: CK61125
- Weight: 167000.000 kg
Technical specification of Heavy duty CNC horizontal lathe machine CK61250
1 Maximum swivel diameter on the bed 2500mm
2 Maximum turning diameter over carriage 2000mm
3 Maximum length of workpiece 100/120/140 dm
4 Maximum weight between center 80/100/120 t
5 Diameter of faceplate 2500mm
6 Maximum torque of faceplate 125/160 KN.m
7 Range of spindle speeds r/min 0.63-125 r/min
8 Maximum cutting force of carriage 125 KN
9 Range of feed rates ( long) 2-4500 mm/min
10 Range of feed rates( transverse ) 2-4500 mm/min
11 Rapid speed of of carriage( long) 4500 mm/min
12 Rapid speed of of carriage( transverse ) 4500 mm/min
13 Horizontal travel of tool post 1000 mm
14 Travel of tailstock quill 300mm
15 Power of main motor 125 KW
16 Machine weight(Approx) 167 t
17 Overall dimensions(L×W×H) 1850×550×325 cm
