- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: TK6916
Floor type boring and milling machines are with high quality and widely used in the mining equipment, shipbuilding, construction equipment, and iron and steel industries.

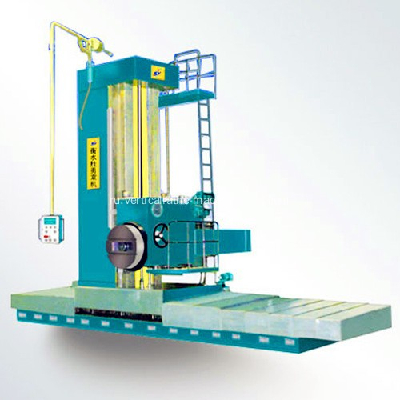

Floor type boring and milling machine TK6916
Spindle diameter 160 mm Milling spindle end diameter 280 mm Ram dimension(width×height) 440×480 mm Spindle taper ISO-50 Boring spindle travel 1000 mm Ram stroke 900 mm Total Travel of boring axis and ram 1900 mm Travel of headstock 4000 mm Column transverse travel 6000 mm Maximum torque of milling spindle 6600 kN.m Spindle speed range ( stepless) 2-600 rpm Boring axis feed range (stepless) 1-1500 mm/min Feed range of Ram ( stepless) 1-3000 mm/min Feed range of headstock 1-6000 mm/min Rapid speed of headstock 6000 mm/min Feed range of column ( stepless) 1-6000 mm/min Main drive motor 1PH7 186 60 kw Feed motor of boring axis 1FT6 105 8AB-71 41 KN.m,1500rpm Feed motor of RAM 1FT6 105 8AB-71 41 KN.m,1500rpm Feed motor of headstock 1FT6 108-8AC71 58 KN.m, 2000 rpm Feed motor of column 1FT6 108-8AC71 58 KN.m, 2000 rpm Machine weight( excluding the platform and revolving platform ) 105 t Overall dimensions(L×W×H) 12200×3915×8070 mm
- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: TK6916
Floor type boring and milling machine TK6916
Spindle diameter 160 mm Milling spindle end diameter 280 mm Ram dimension(width×height) 440×480 mm Spindle taper ISO-50 Boring spindle travel 1000 mm Ram stroke 900 mm Total Travel of boring axis and ram 1900 mm Travel of headstock 4000 mm Column transverse travel 6000 mm Maximum torque of milling spindle 6600 kN.m Spindle speed range ( stepless) 2-600 rpm Boring axis feed range (stepless) 1-1500 mm/min Feed range of Ram ( stepless) 1-3000 mm/min Feed range of headstock 1-6000 mm/min Rapid speed of headstock 6000 mm/min Feed range of column ( stepless) 1-6000 mm/min Main drive motor 1PH7 186 60 kw Feed motor of boring axis 1FT6 105 8AB-71 41 KN.m,1500rpm Feed motor of RAM 1FT6 105 8AB-71 41 KN.m,1500rpm Feed motor of headstock 1FT6 108-8AC71 58 KN.m, 2000 rpm Feed motor of column 1FT6 108-8AC71 58 KN.m, 2000 rpm Machine weight( excluding the platform and revolving platform ) 105 t Overall dimensions(L×W×H) 12200×3915×8070 mm
