- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: C5263
Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co.,Ltd specializes in the manufactures and sells of metalworking machines: CNC lathe machine,vertical lathe machine ,Heavy duty horizontal lathe machine, Gantry milling machine, Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.
If interested, please feel free to contact us.

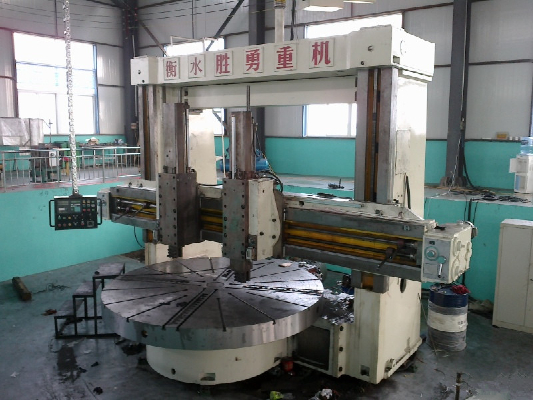

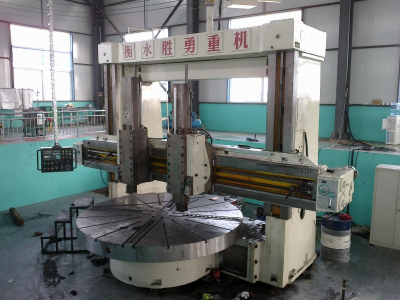

Technical specification of Double column vertical turning lathe VTL C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 3150/3650/4150 mm
3 Maximum Weight of workpiece 50/80/100 t
4 Table diameter 4500/5750 mm
5 Speed range of table 0.5-50r/min
6 Maximum torque 1 60KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm
- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: C5263
Technical specification of Double column vertical turning lathe VTL C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 3150/3650/4150 mm
3 Maximum Weight of workpiece 50/80/100 t
4 Table diameter 4500/5750 mm
5 Speed range of table 0.5-50r/min
6 Maximum torque 1 60KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm
