Product Details
- Size: 8610*6000*5600 mm
- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: C5250
- Weight: 42000.000 kg

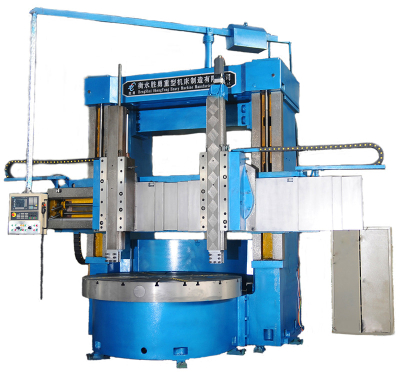

Technical specification of Double column vertical lathe machine C5250
1 Maximum turning diameter 5000 mm
2 Maximum Height of workpiece 2000/2500/3000/3150 /3650/4150mm
3 Maximum Weight of workpiece 32/50/80 t
4 Table diameter 3600 /4200 /4500 mm
5 Speed range of table 1.3~42r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1250 mm
8 Horizontal travel of tool post -20~2630 mm
9 Rotation angle of tool post ±30°
10 Power of main motor 75/98 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800mm
10930×6000×7300mm
10930×6000×7800mm
1 Maximum turning diameter 5000 mm
2 Maximum Height of workpiece 2000/2500/3000/3150 /3650/4150mm
3 Maximum Weight of workpiece 32/50/80 t
4 Table diameter 3600 /4200 /4500 mm
5 Speed range of table 1.3~42r/min
6 Maximum torque 63 KN/min
7 Vertical Travel of tool post 1250 mm
8 Horizontal travel of tool post -20~2630 mm
9 Rotation angle of tool post ±30°
10 Power of main motor 75/98 kw
11 Overall dimensions(L×W×H) 8610×6000×5600 mm
8610×6000×6100 mm
8610×6000×6600 mm
10930×6000×6800mm
10930×6000×7300mm
10930×6000×7800mm
