- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: C5263

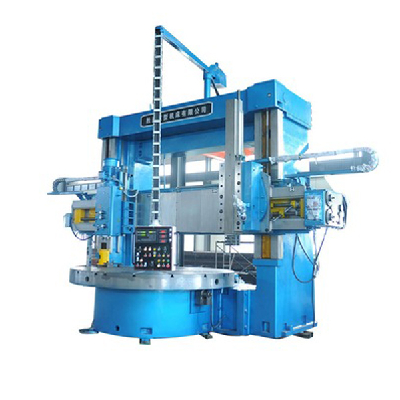

Conventional Vertical Lathe machine is processing for the black metals and some non-metallic parts within the outer cylinder Inside and outside, the cone surface, face, groove, boring and rotary surface coarse fine turning.
Technical specification of Conventional Vertical Lathe machine C5263
1 Maximum turning diameter 6300 mm
2 Maximum Height of workpiece 3150/3650/4150 mm
3 Maximum Weight of workpiece 50/80/100 t
4 Table diameter 4500/5750 mm
5 Speed range of table 0.5-50r/min
6 Maximum torque 1 60KN/min
7 Vertical Travel of tool post 1600 mm
8 Horizontal travel of tool post 3415 mm
9 Rotation angle of tool post -15°-±30°
10 Power of main motor 75kw
11 Overall dimensions(L×W×H) 12230×6800×6800 mm
12230×6800×7300 mm
12230×6800×7800 mm
