- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: TK6913

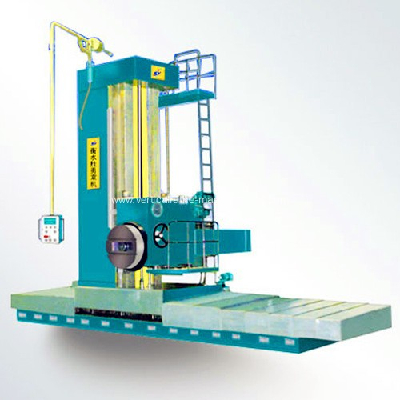

It can use all kinds of standard cutter, and has large cutting torque and cutting depth. The machine bed, table, bar are manufactured with good cast iron.The spindle system features strong rigidity, CNC Floor type horizontal boring machine can be used for boring,and milling. Floor type horizontal boring machines TK6913 Floor type horizontal boring machines TK691 Spindle diameter 130 mmCNC Floor type horizontal boring machine model:
Technical specification of CNC floor type Horizontal boring machine:TK6913
Milling spindle end diameter 221.44 mm
Ram dimension(width×height) 350×380 mm
Spindle taper ISO-50
Boring spindle travel 800 mm
Ram stroke 700 mm
Total Travel of boring axis and ram 1500 mm
Travel of headstock 2000 mm
Column transverse travel 3000 mm
Maximum torque of milling spindle 15000 KN.m
Spindle speed range ( stepless) 3.15-600 rpm
Boring axis feed range (stepless) 1-1500 mm/min
Feed range of Ram ( stepless) 1-3000 mm/min
Feed range of headstock 1-6000 mm/min
Rapid speed of headstock 6000 mm/min
Feed range of column ( stepless) 1-6000 mm/min
Main drive motor 1PH7 224 37 kw
Feed motor of boring axis 1FT6 105 8AB-71 41 KN.m,1500rpm
Feed motor of RAM 1FT6 105 8AB-71 42 KN.m,1500rpm
Feed motor of headstock 1FT6 108-8AC71 58 KN.m, 2000 rpm
Feed motor of column 1FT6 108-8AC71 58 KN.m, 2000 rpm
Machine weight( excluding the platform and revolving platform ) 65 t
Overall dimensions(L×W×H) 9220×3300×6385 mm
