- Place of Origin: China
- Brand Name: vertical lathe machine
- Model Number: CK61125
- Weight: 70000.000 kg

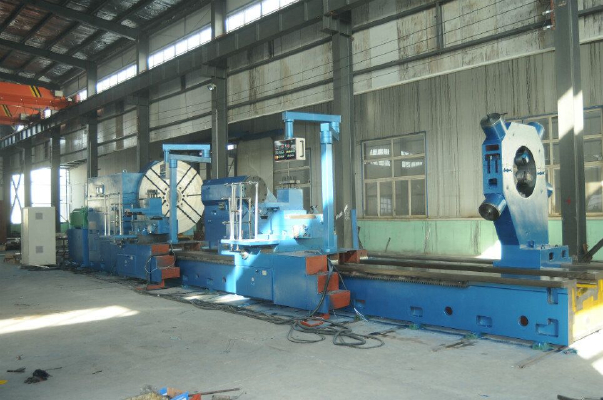

Technical specification of CNC Large diameter horizontal lathe machine CK61125
1 Maximum swivel diameter on the bed 1250mm
2 Maximum turning diameter over carriage 1000mm
3 Maximum length of workpiece 60/80/100 dm
4 Maximum weight between center 20 t
5 Diameter of faceplate 1250mm
6 Maximum torque of faceplate 63KN.m
7 Range of spindle speeds r/min 1.25-250r/min
8 Maximum cutting force of carriage 60 KN
9 Range of feed rates ( long) 2-4500 mm/min
10 Range of feed rates( transverse ) 2-4500 mm/min
11 Rapid speed of of carriage( long) 4500 mm/min
12 Rapid speed of of carriage( transverse ) 4500 mm/min
13 Horizontal travel of tool post 525 mm
14 Travel of tailstock quill 250mm
15 Power of main motor 55KW
16 Machine weight(Approx) 70 t
17 Overall dimensions(L×W×H) 1250×490×225 cm
